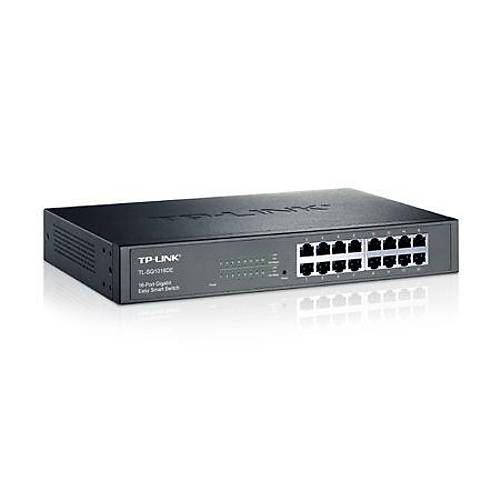

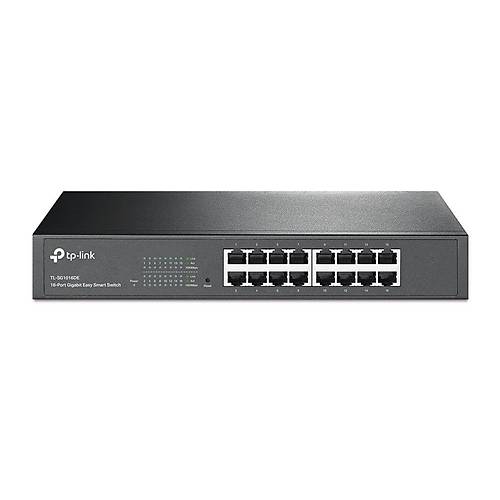

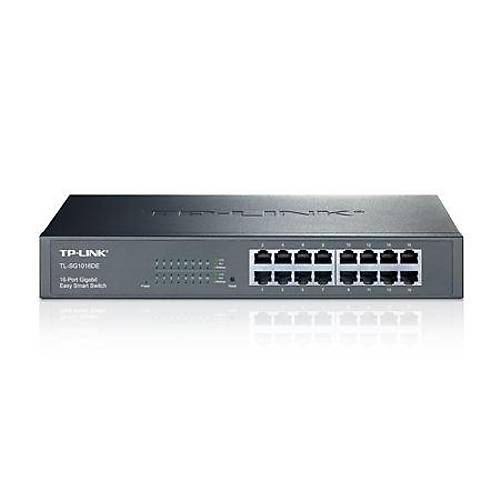

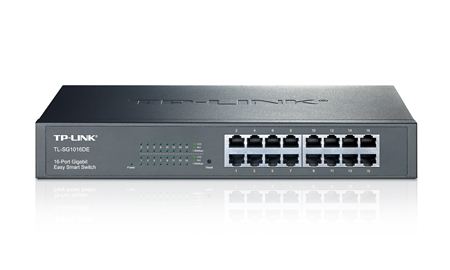

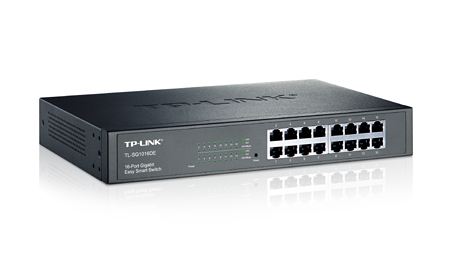

16 Port 10/100/1000MBPS Smart Switc

Standartlar ve Protokoller IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE
802.3x, IEEE 802.1q, IEEE 802.1p
Arabirim 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Ağ Medyası 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
Fan Sayısı Fanless
Fiziksel Güvenlik Kilidi No
Güç Kaynağı 100-240VAC, 50/60Hz
Boyutlar ( W X D X H ) 11.6*7.1*1.7 in. (294*180*44 mm)
Montaj Rack Mountable
Maks. Güç Tüketimi 10.22W (220V/50Hz)
Max Heat Dissipation 34.52 BTU/h
PERFORMANS
Anahtarlama Kapasitesi 32Gbps
Paket Yönlendirme Hızı 23.8Mpps
MAC Adres Tablosu 8K
Paket Buffer Belleği 512KB
Jumbo Frame 10240Bytes
YAZILIM ÖZELLİKLERİ
Quality of Service Support Port Based/802.1p Based priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Özellikleri IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
İletim Metodu Store-And-Forward
