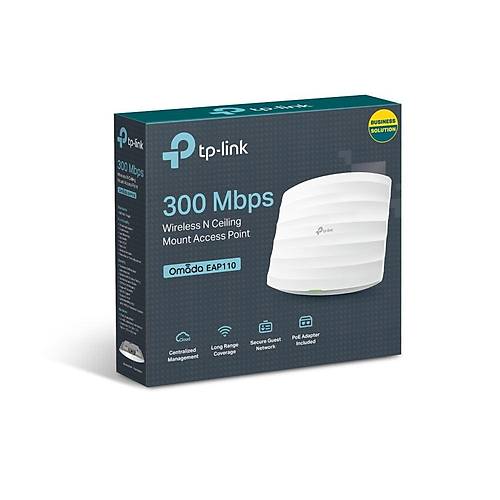

300MBPS WIRELESS ACCESS POINT

DONANIM ÖZELLİKLERİ

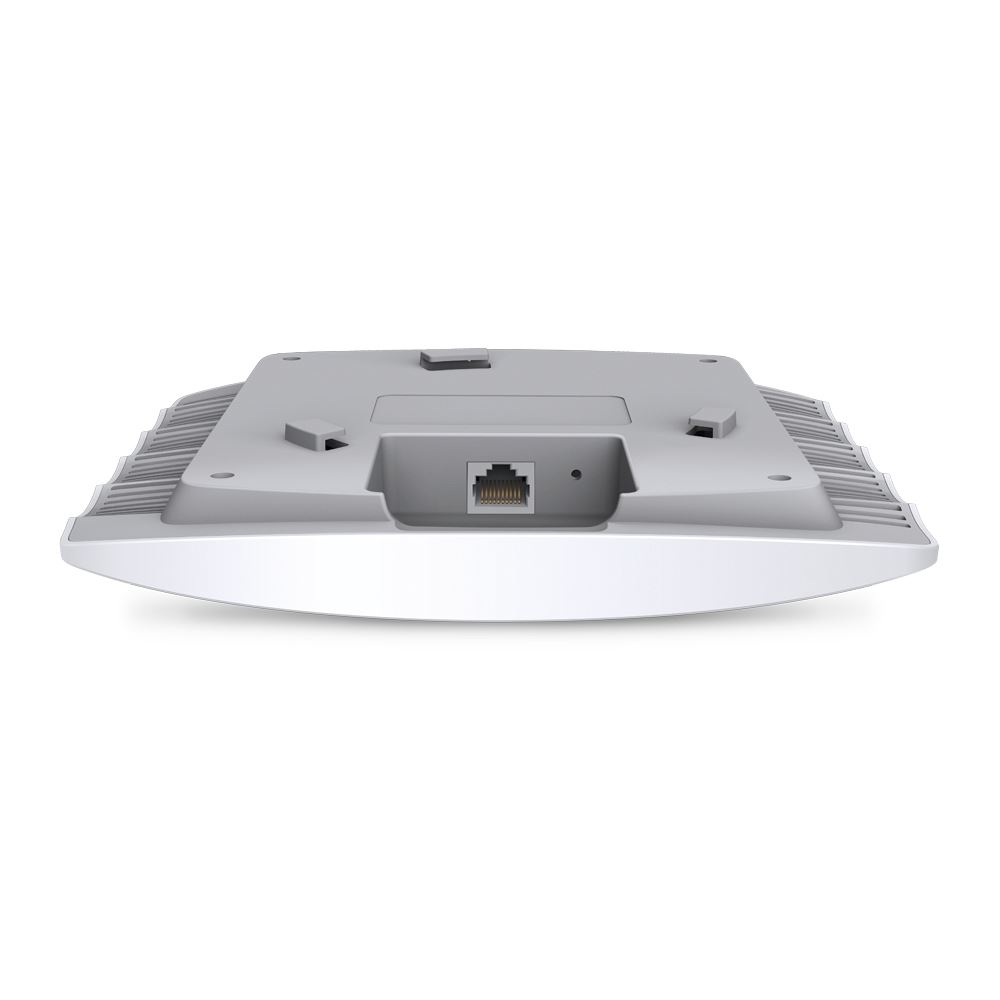

Arabirim 1× Fast Ethernet (RJ-45) Port (Support Passive PoE)
Buton Reset
Güç Kaynağı 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Güç Tüketimi 2.8 W
Dimensions 7.5×6.8×1.2 in (189.4×172.3×29.5mm)
Anten Tipi Internal 2× 4 dBi Omni
Montaj Ceiling /Wall Mounting (Kits included)
KABLOSUZ ÖZELLİKLERİ
Kablosuz Standartlar IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frekans 2.4?2.4835 GHz
Bağlantı Hızı ? 11n: Up to 300 Mbps (dynamic)
? 11g: Up to 54 Mbps (dynamic)
? 11b: Up to 11 Mbps (dynamic)
Alıcı Hassasiyeti ? 300M: -71 dBm@10% PER
? 150M: -75 dBm@10% PER
? 54M: -78 dBm@10% PER
? 11M: -93 dBm@8% PER
? 6M: -92 dBm@10% PER
? 1M: -96 dBm@8% PER
Kablosuz Fonksiyonlar ? Multiple SSIDs (Up to 8 SSIDs)
? Enable/Disable Wireless Radio
? Automatic Channel Assignment
? Transmit Power Control (Adjust Transmit Power on dBm)
? QoS(WMM)
? Rate Limit
? Reboot Schedule
? Wireless Schedule
? Wireless Statistics based on SSID/AP/Client
Kablosuz Güvenlik ? Captive Portal Authentication
? Access Control
? Wireless MAC Address Filtering
? Wireless Isolation Between Clients
? SSID to VLAN Mapping
? Rogue AP Detection
? 802.1X Support
? 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
İletim Gücü ? CE:
?19 dBm (EIRP)
? FCC:
?21 dBm
YÖNETİM
Omada App Yes
Centralized Management ? Omada Cloud-Based Controller
? Omada Hardware Controller (OC300)
? Omada Hardware Controller (OC200)
? Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller,
or Omada Software Controller)
Eposta Uyarı Yes
LED Açık/Kapalı Kontrolü Yes
MAC Erişim Kontrolü Yönetimi Yes
SNMP v1,v2c
Yerel/Uzak Sistem Günlüğü Kaydı Local/Remote Syslog
SSH Yes
Web-tabanlı Yönetim HTTP/HTTPS
Management VLAN Yes
