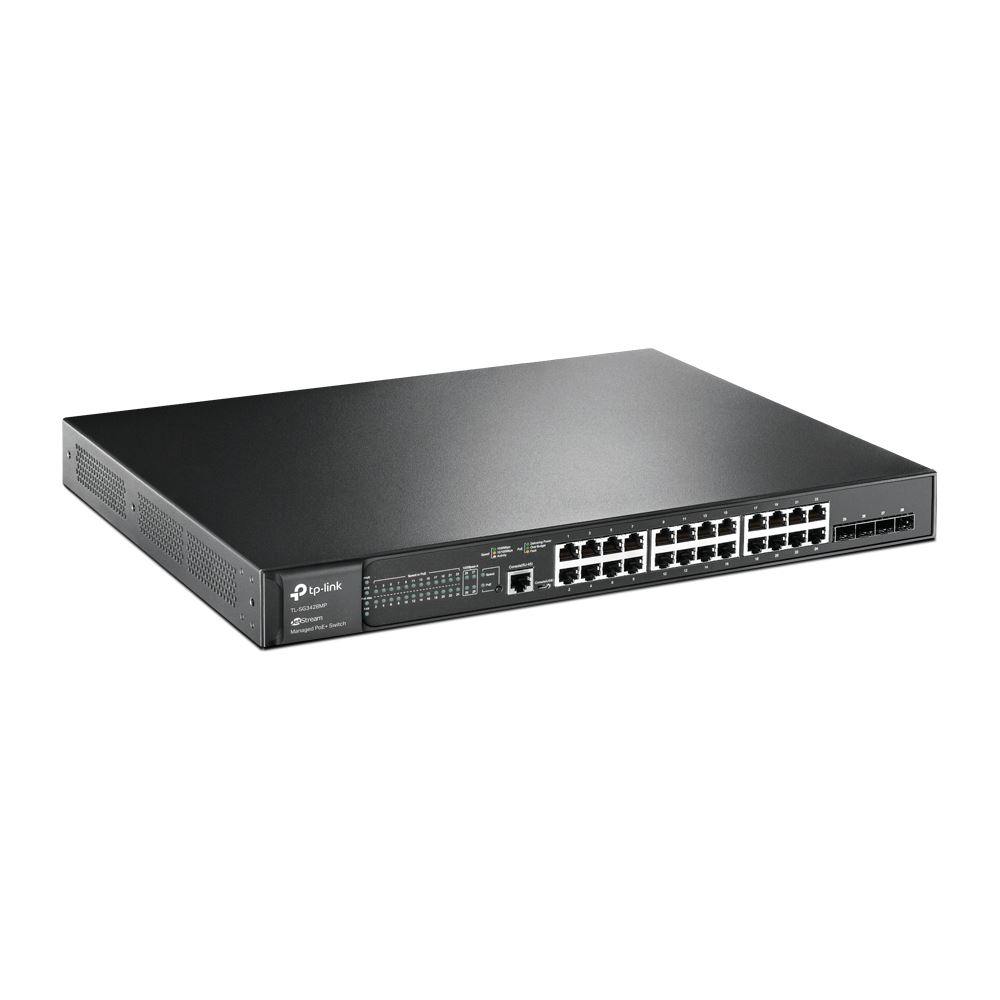

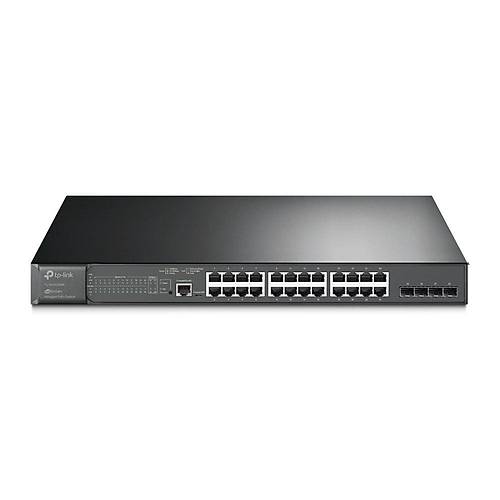

JetStream 28-Port Gigabit and 4-Port L2

DONANIM ÖZELLİKLERİ
Arabirim ? 24× 10/100/1000Mbps RJ45 Ports
? 4× Gigabit SFP Slots
? 1× RJ45 Console Port
? 1× Micro-USB Console Port
Fan Sayısı 2

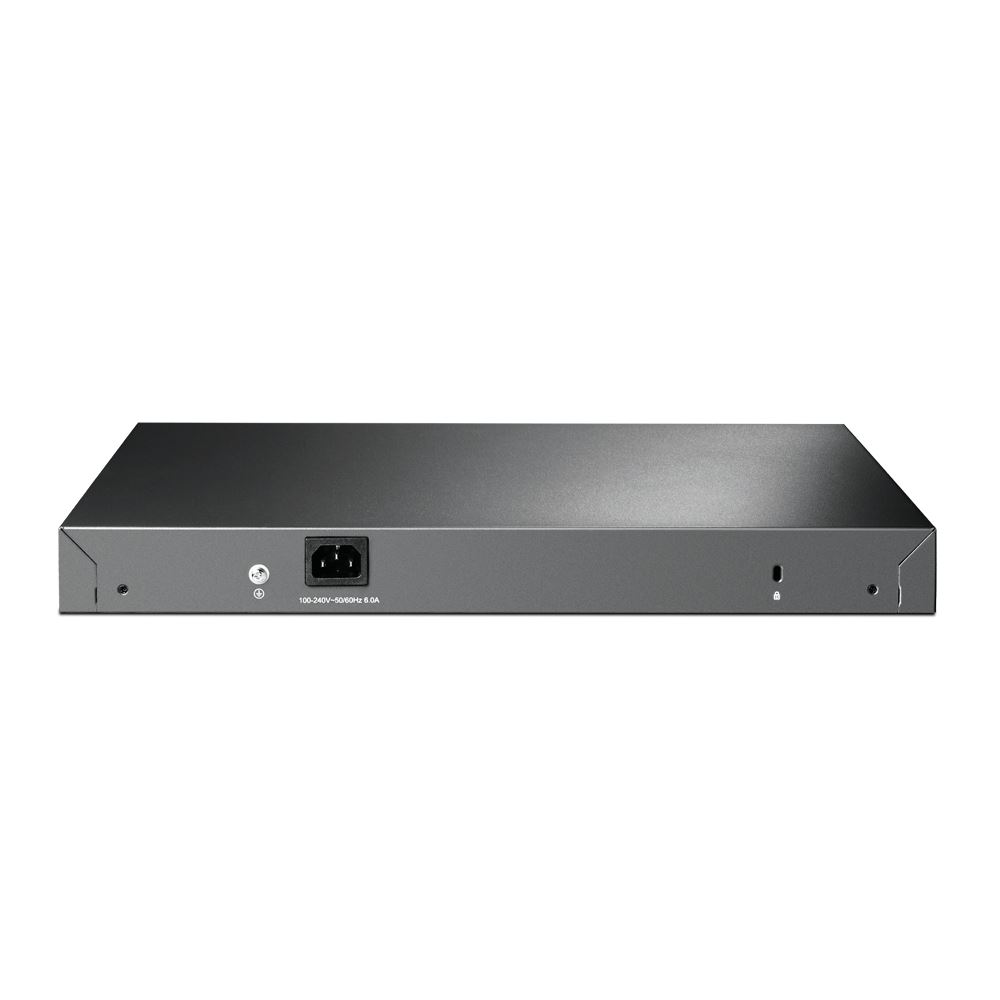

Güç Kaynağı 100-240 V AC~50/60 Hz
PoE+ Portları (RJ45) ? Standard: 802.3at/af compliant
? PoE+ Ports: 24 Ports, up to 30 W per port
? Power Budget: 384 W
Boyutlar ( W X D X H ) 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Montaj Rack Mountable
Maks. Güç Tüketimi ? 31.0 W (110 V/60 Hz) (no PD connected)
? 463.8 W (110 V/60 Hz) (with 384 W PD connected)
Max Heat Dissipation ? 105.78 BTU/h (110 V/60 Hz) (no PD connected)
? 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected)
PERFORMANS
Anahtarlama Kapasitesi 56 Gbps
Paket Yönlendirme Hızı 41.66 Mpps
MAC Adres Tablosu 8K
Jumbo Frame 9 KB
YAZILIM ÖZELLİKLERİ
Quality of Service ? 8 priority queues
? 802.1p CoS/DSCP priority
? Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
? Bandwidth Control
- Port/Flow based Rating Limiting
? Smoother Performance
? Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
L2 ve L2+ Özellikleri ? Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
? Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect,
Loop Protect
? Loopback Detection
- Port-based
- VLAN based
? Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
? Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both
L2 Multicast ? Supports 511 (IPv4, IPv6) IGMP groups
? IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
? IGMP Authentication
? MVR
? MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
? Multicast Filtering: 256 profiles and 16 entries per profile
VLAN ? VLAN Group
- Max 4K VLAN Groups
? 802.1q Tagged VLAN
? MAC VLAN: 12 Entries
? Protocol VLAN: Protocol Template 16, Protocol VLAN 16
? GVRP
? VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
? Voice VLAN
Erişim Kontrol Listesi ? Time-based ACL
? MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
? IP ACL
-Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
? Combined ACL
? Packet Content ACL
? IPv6 ACL
? Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
? ACL apply to Port/VLAN
Güvenlik ? IP-MAC-Port Binding
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
? IPv6-MAC-Port Binding
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard
? DoS Defend
? Static/Dynamic Port Security
- Up to 64 MAC addresses per port
? Broadcast/Multicast/Unicast Storm Control
- kbps/ratio/pps control mode
? IP/Port/MAC based access control
? 802.1X
- Port based authentication
- Mac based authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication and accountability
? AAA (including TACACS+)
? Port Isolation
? Secure web management through HTTPS with SSLv3/TLS 1.2
? Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IPv6 ? IPv6 Dual IPv4/IPv6
? Multicast Listener Discovery (MLD) Snooping
? IPv6 ACL
? IPv6 Interface
? Static IPv6 Routing
? IPv6 neighbor discovery (ND)
? Path maximum transmission unit (MTU) discovery
? Internet Control Message Protocol (ICMP) version 6
? TCPv6/UDPv6
? IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
L3 Özellikleri ? 16 IPv4/IPv6 Interfaces
? Static Routing
- 48 static routes
? Static ARP
? 316 ARP Entries
? Proxy ARP
? Gratuitous ARP
? DHCP Server
? DHCP Relay
? DHCP L2 Relay
Yönetim ? Web-based GUI
? Command Line Interface (CLI) through console port, telnet
? SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
? SDM Template
? DHCP/BOOTP Client
? 802.1ab LLDP/LLDP-MED
? DHCP AutoInstall
? Dual Image, Dual Configuration
? CPU Monitoring
? Cable Diagnostics
? EEE
? Password Recovery
? SNTP
? System Log
Gelişmiş Özellikler ? Support Omada Hardware Controller (OC200/OC300),
Software Controller, Cloud-Based Controller
? Automatic Device Discovery
? Batch Configuration
? Batch Firmware Upgrading
? Intelligent Network Monitoring
? Abnormal Event Warnings
? Unified Configuration
? Reboot Schedule
? ZTP (Zero-Touch Provisioning)*
DİĞERLERİ
Sertifika CE, FCC, RoHS
Paket İçeriği ? TL-SG3428MP Switch
? Power Cord
? Quick Installation Guide
? Rackmount Kit
? Rubber Feet
Ortam ? Operating Temperature: 0?45 ? (32?113 ?);
? Storage Temperature: -40?70 ? (-40?158 ?)
? Operating Humidity: 10?90% RH non-condensing
? Storage Humidity: 5?90% RH non-condensing
