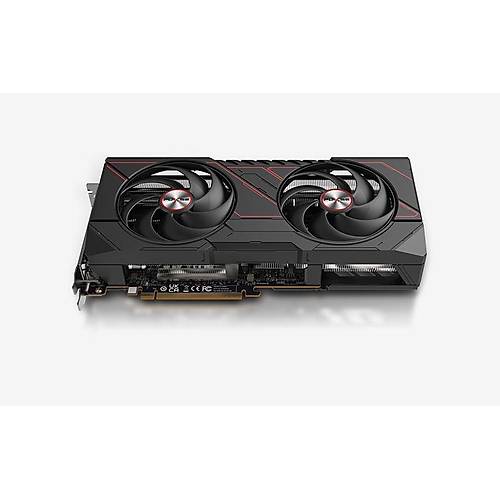

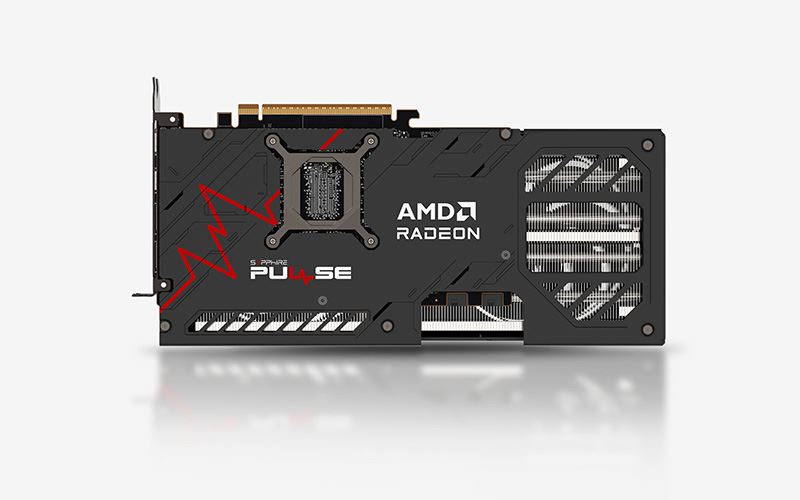

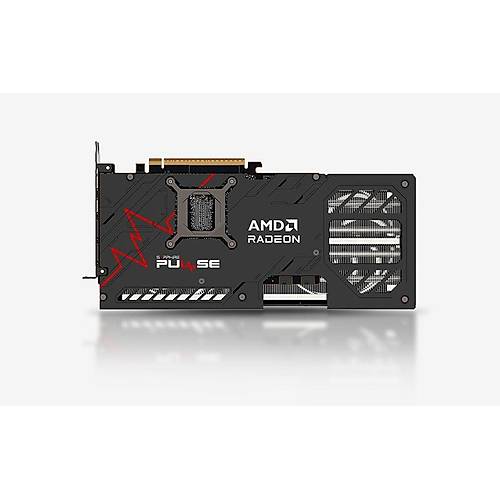

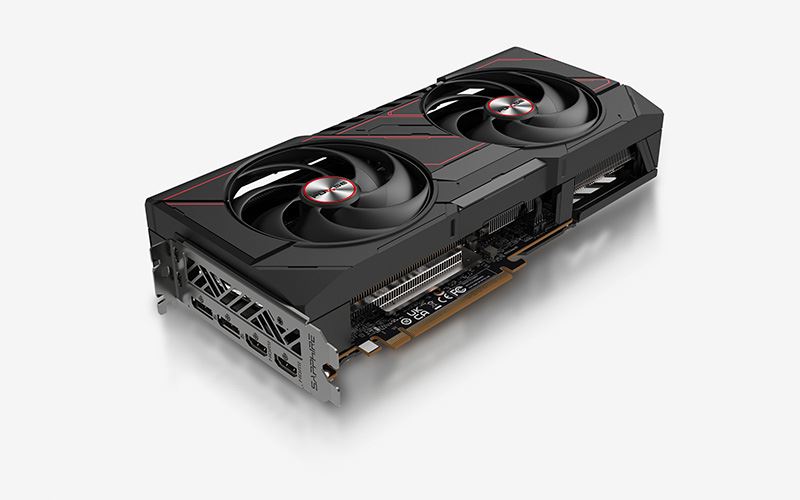

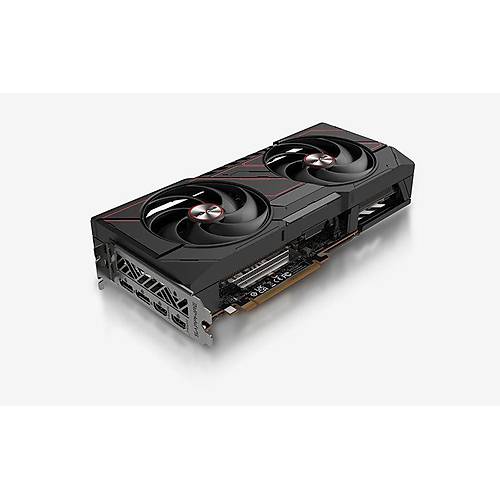

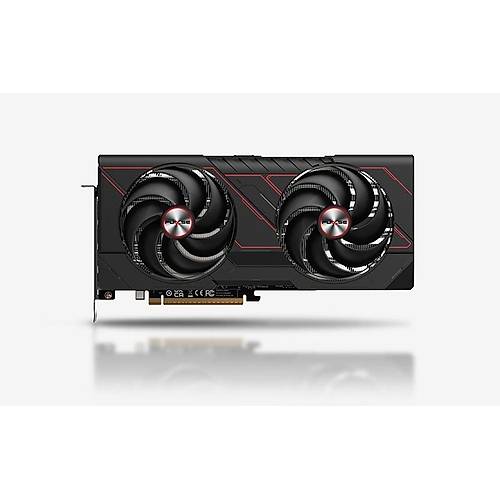

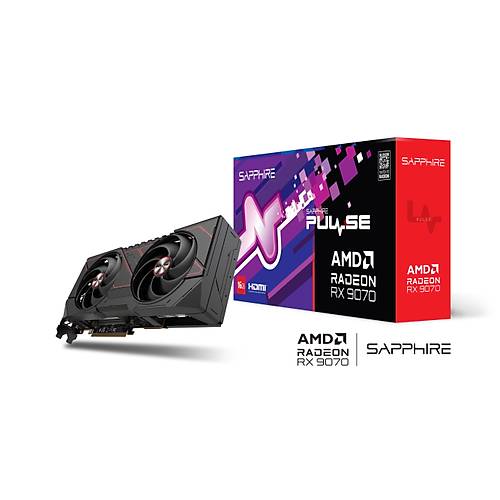

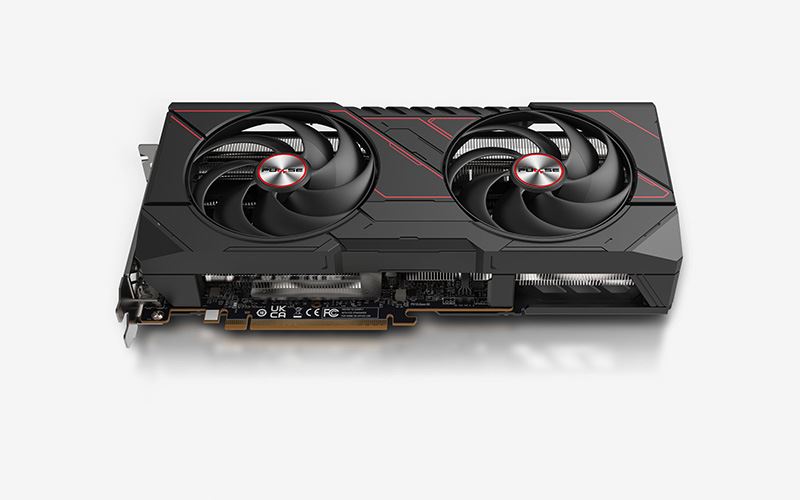

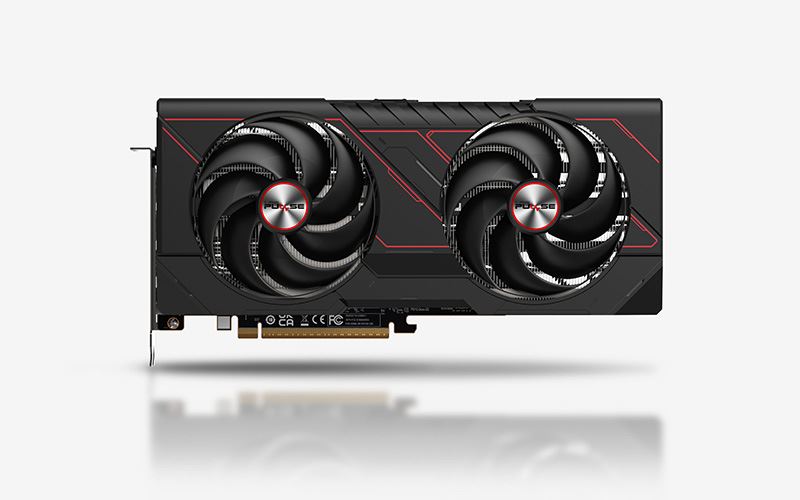

VGA PULSE AMD RX9070 16GB

GPU
AMD Radeon? RX 9070 Graphics Card
AMD RDNA? 4 Architecture
Engine Clock
Boost Clock: Up to 2520 MHz
Game Clock: Up to 2070 MHz
Boost Clock is the maximum frequency achievable on the GPU running
bursty workload. Boost clock achievability, frequency, and sustainabilty
will vary based on several factors, including but not limited to:
thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming
applications, set to typical TGP(Total Graphics Power). Actual
individual game clock results may vary.
Stream Processors
3584
Compute Units
56 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
Infinity Cache
64MB
Ray Accelerators
56
AI Accelerator
112
Memory Size/Bus
16GB/256 bit GDDR6
Memory Clock
20 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI®: 7680×4320
DisplayPort? 2.1a: 7680×4320
Interface
PCI-Express 5.0 x16
Output
2x HDMI®
2x DisplayPort? 2.1a
BIOS Support
UEFI
Game Index
4K
Sapphire Features
Honeywell PTM7950 Thermal Interface Material (TIM)
AeroCurve Fan Blade
Free Flow
FrameDefense
Integrated Cooling Module
Dual-X Cooling Technology
High TG Copper PCB
Optimized Composite Heatpipes
Metal Backplate
Two-Ball Bearing Fans
12-Phase Digital Power Design
Fuse Protection
Intelligent Fan Control
Precision Fan Control
TriXX Supported
TriXX Boost
AMD Features
AMD RDNA? 4 Architecture
56 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
AMD HYPR-RX with AFMF 2
AMD FidelityFX? Super Resolution 4 with AI Upscaling
DisplayPort? 2.1a
AMD Radiance Display? Engine
AMD Fluid Motion Frames 2 technology
AMD Radeon? Anti-Lag 2 technology
AV1 Encode/Decode
AMD FidelityFX? technologies
Microsoft® DirectX® 12 Ultimate
AMD Noise Suppression
AMD Freesync? technology
16 GB of GDDR6 on 256-bit Memory Bus
AMD smart technologies
AMD Software: Adrenalin Edition? application
Cooler Type
Dual-X Cooling
AeroCurve Fan Blade
Free Flow
Integrated Cooling Module
High TG Copper PCB
Optimized Composite Heatpipes
Two-Ball Bearing
Form Factor
2.5 slot, ATX
Dimension: 280(L)X 120.25(W)X 51.5 (H)mm
Power Consumption
220W Typical Board Power
OS
Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement
Minimum 650 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot
available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
